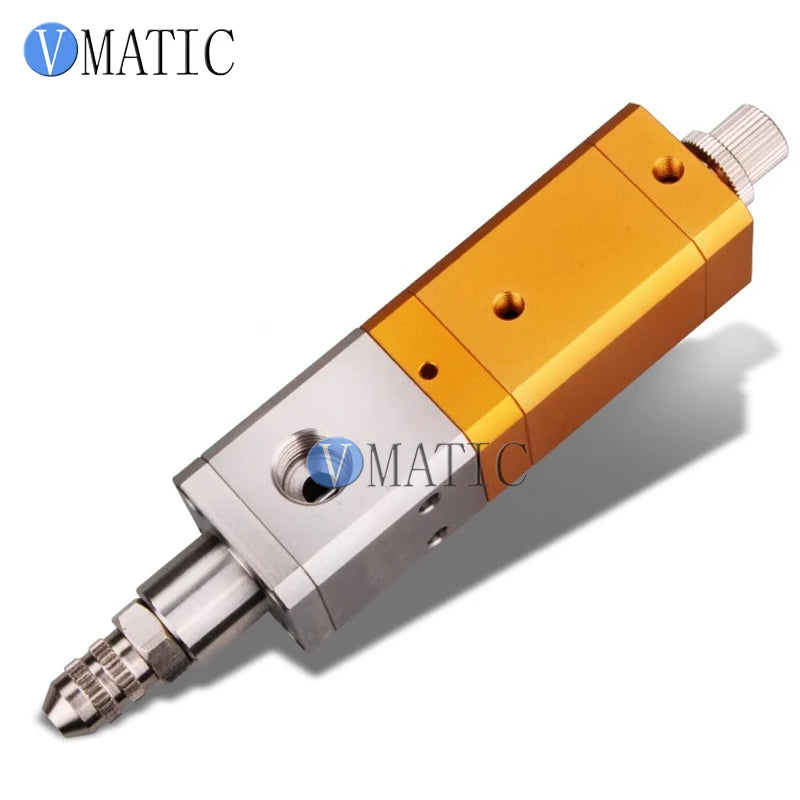

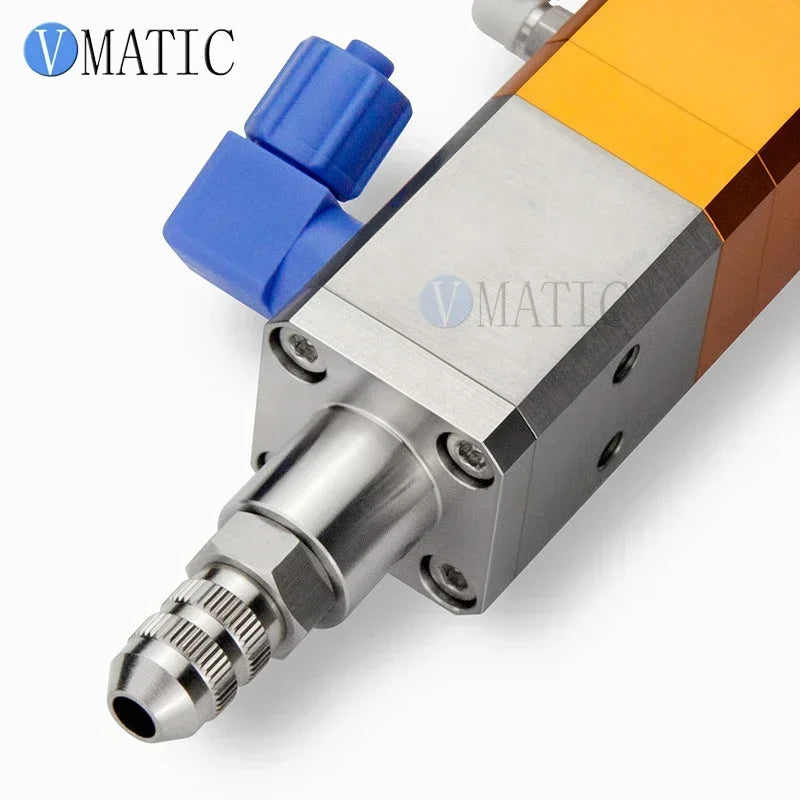

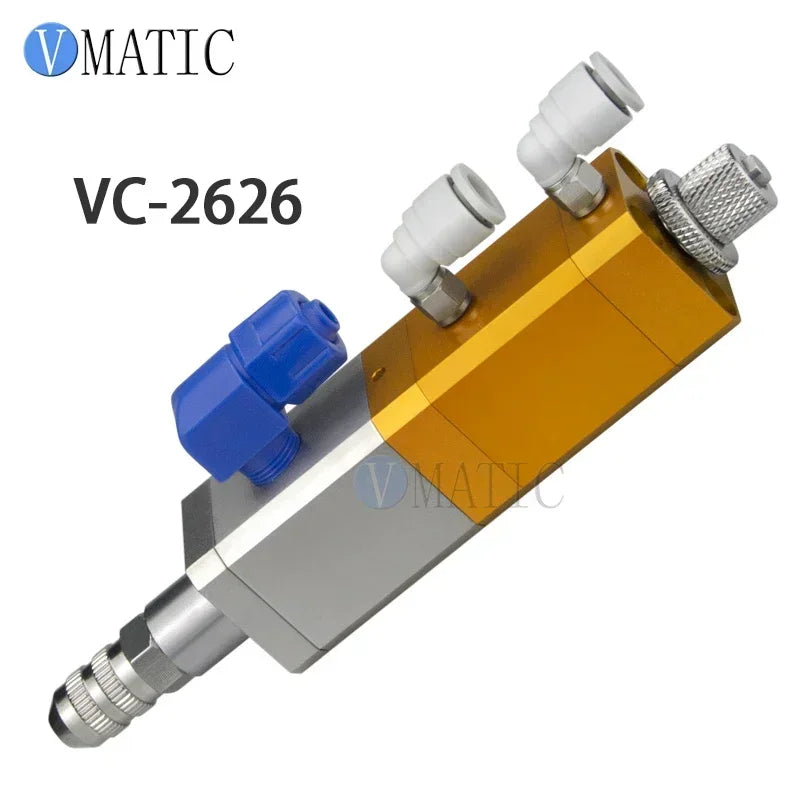

‌Pneumatic Glue Dispenser with Suck Back Valve | Precision Needle Tip Control for Electronics/Automotive Free Shipping‌

‌Pneumatic Glue Dispenser with Suck Back Valve | Precision Needle Tip Control for Electronics/Automotive Free Shipping‌

$98.99 USD
$0.00 USD $98.99 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet

‌Pneumatic Glue Dispenser with Suck Back Valve | Precision Needle Tip Control for Electronics/Automotive Free Shipping‌




Details
Structure Type:Suck Back
Control Type:Double Acting
Type of Operation:A
Flow Adjustment:Available
Operating Air Source:0.4-0.7Mpa (1.0Mpa=10kgf/cm2=145psi=10bar)
Min.Shot Volume:0.01ml
Operation Viscositi:1-1.000.000cps
Body Material:Sus 304 Stainless Steel
Material Input Pressure: <1.0Mpa (1.0Mpa=10kgf/cm2=145psi=10bar)
Material Inlet Outlet Size: Female1/8"NPT
Operating Cycle:<600/min
Overall Dimensions(mm):Square 26*26*141 mm
Weight (Gram): 240g
Applied Material: (Ideal for medium to high viscosity, non-level seeking materials and thixotropic or cohesive (stringy) materials for faster shut-off. )
Grease,Silicon,Epopxy,Paint

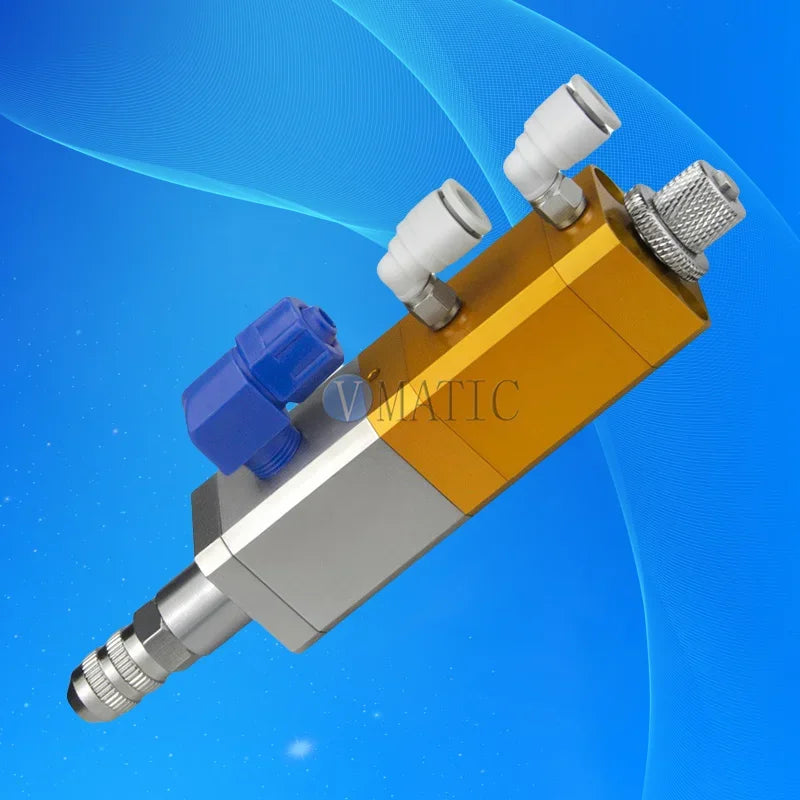

This valve is opened and closed by applying compressed air to the air inlet of the valve.
The air inlet which is used to close the valve is at the center of the valve.
The air inlet which is used to open the valve is at the top of the valve.

Once the valve is connected to the fluid and air supply, it is ready to operate. When the piston is cycling properly, applying fluid pressure and shift the valve open. Keep the valve open until all the air has been purged out of the system and the flow of material is consistent.

Cycle the valve several times to make sure it closes and stops the flow of material without dripping.

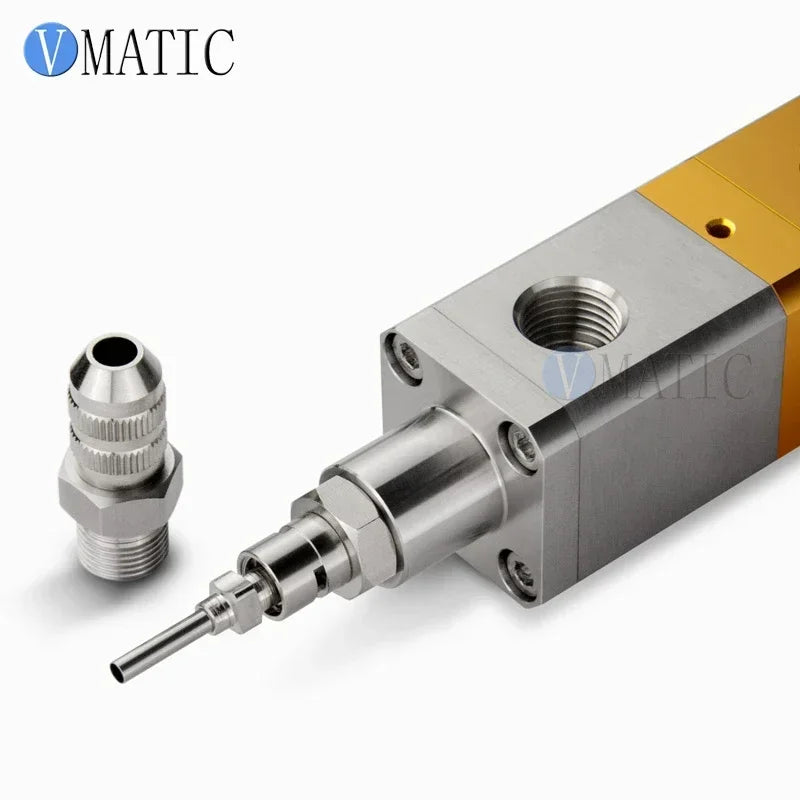

The dispensing amount is mainly affected by the size of the selected needle and the setting of the fluid pressure.

Fine adjustment :

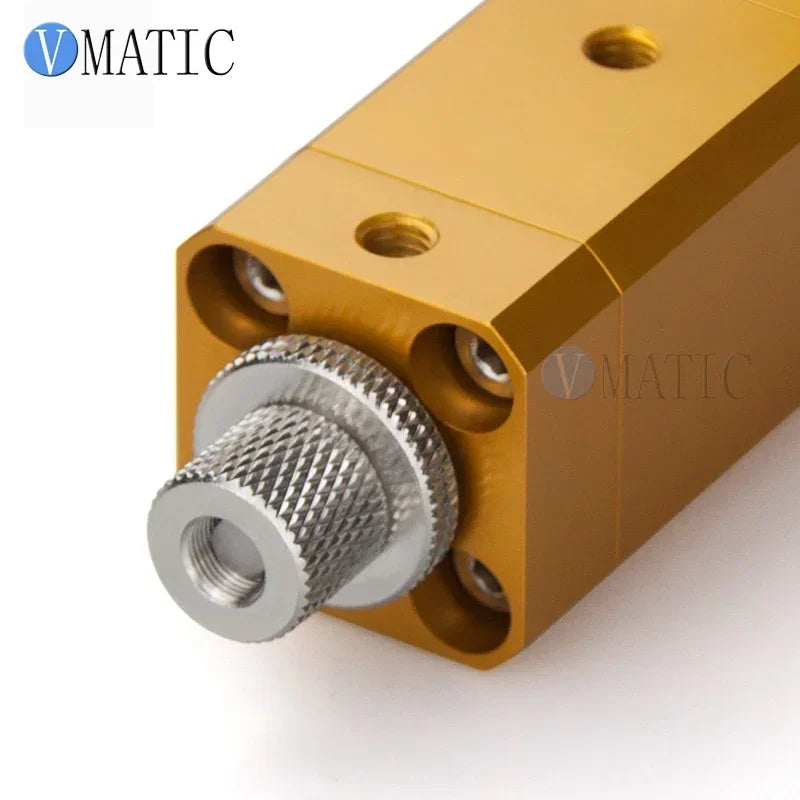

This valve has a stroke adjuster and a locking nut at the top of the valve. This allows the user to adjust the flow of material through the valve by limiting the travel of the piston. Turning the adjuster clockwise will decrease the flow and counter-clockwise will increase the flow. If the stoke adjuster is turned all the way down, it will stop the flow of material entirely. Once the desired flow has been achieved, tighten the lock nut.

Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-8 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Company Information

Ningbo VMATIC Liquid Control Industry Co., Ltd is a specialized manufacturer and exporter of dispensing systems and equipment for all industries. All fluids can be accurately dispensed either by air pressure or mechanical force. We are dedicated to dispensing design, development, production and sales. We have 10 major series for our products, respective classification according quality and function, etc. Each of our items is abided by providing to all industries a cost-effective solution for the needs to dispense liquids and paste in a controlled manner.

All fluids can be accurately dispensed either by air pressure or mechanical force. We supply simple hand or bench dispensers for single part materials through to automatic robotic dispensing systems with vision recognition and meter-mix equipment for two-part materials, such as epoxies. A complete line of replaceable syringes, barrels, needles and tips are also available.

Our products are suitable for many applications including Medical, Electronic, Jewelry, Automotive and general industrial OEM assembly operations.

We are committed to providing our customers with high quality items and good value for money, which will ensure satisfaction with a high level of dedication.

We look forward to the opportunity to service your dispensing requirements.
