High Quality VCB668-1A Golden Brass Electronic Mini Water Heater Flow Switch

High Quality VCB668-1A Golden Brass Electronic Mini Water Heater Flow Switch

$41.86 USD
$0.00 USD $41.86 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet

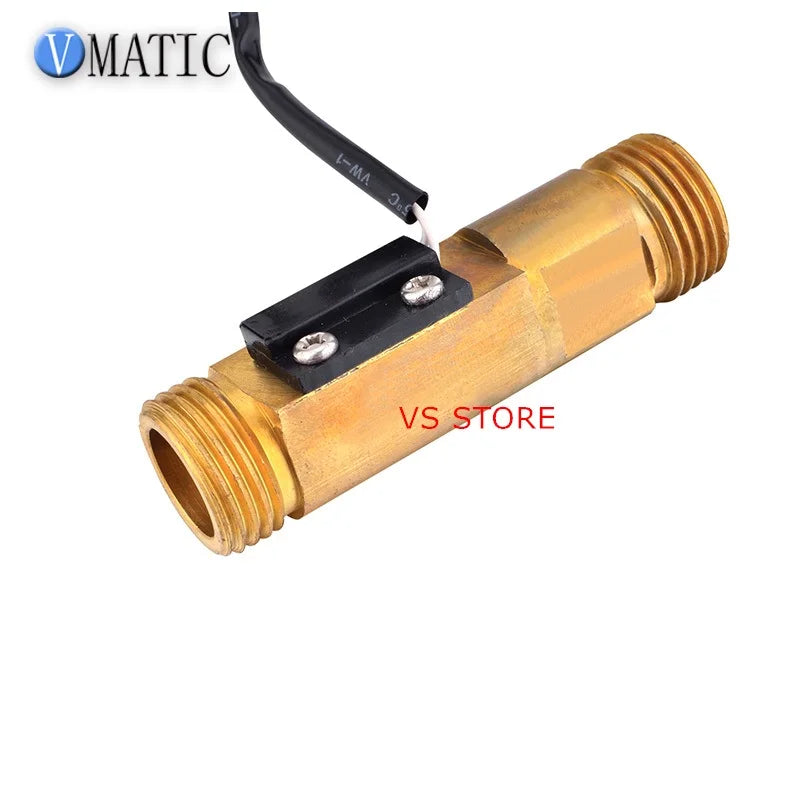

High Quality VCB668-1A Golden Brass Electronic Mini Water Heater Flow Switch







Introduction: flow sensor consists of magnetic core, rotating impeller, external casing and sensor. Flow through the sensor activates the magnetic core to trigger switch action, with signal output.



Features: imported components of the magnetic switch, sample working principles, and highly reliable, cheaper price.



Applications: it is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.



Fluxostato



o interruptor de escoamento do núcleo, e um alojamento do sensor, quando o líquido por conduo da operao do núcleo, fazendo com que a operação de comutação, o sinal de comutação de saída.



Características: Importado elemento de comutao magnética, o princípio de funcionamento é simples, confiável e barato.



Aplicações: aquecedor elétrico de água, aquecedores de água solares de controle de circulao de água, condicionadores de ar e outros sistemas de água, fora do controle da água, interruptor de controle da bomba, controle de válvula solenóide on-off ou a força da água, controle da água alimentado.




Flow switch

Specifications

item

technical parameters



Max contact power

10W

50W

Max switch voltage

100VDC/100VAC

350VDC/300VAC

Min break down voltage

150VDC

600VDC

Max switch current

DC0.5A

DC0.7A/AC0.5A

Max carry current

1.0A

2.5A

Max contact resistance

100mΩ

100mΩ

Min insulation resistance

1000000000Ω

10000000000Ω

Contact life

10000000times

Operating temperature

-1~+85 degree centigrade

Applicable environment temperature

-40~+125 degree centigrade

Min flow rate

≥1.5L/MIN

Max operating flow rate

15L/MIN30L/MIN50L/MIN(optional)

Max carry pressure

1.2 MPa





Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-8 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Company Information

Ningbo VMATIC Liquid Control Industry Co., Ltd is a specialized manufacturer and exporter of dispensing systems and equipment for all industries. All fluids can be accurately dispensed either by air pressure or mechanical force. We are dedicated to dispensing design, development, production and sales. We have 10 major series for our products, respective classification according quality and function, etc. Each of our items is abided by providing to all industries a cost-effective solution for the needs to dispense liquids and paste in a controlled manner.

All fluids can be accurately dispensed either by air pressure or mechanical force. We supply simple hand or bench dispensers for single part materials through to automatic robotic dispensing systems with vision recognition and meter-mix equipment for two-part materials, such as epoxies. A complete line of replaceable syringes, barrels, needles and tips are also available.

Our products are suitable for many applications including Medical, Electronic, Jewelry, Automotive and general industrial OEM assembly operations.

We are committed to providing our customers with high quality items and good value for money, which will ensure satisfaction with a high level of dedication.

We look forward to the opportunity to service your dispensing requirements.

History

1 Our Factory Established

our factory founded from 2009, start our demestic sales

2 Good Selling In China

we sell fast in our China Market and enjoy great reputation

3 Imports & Exports Department Established

our imports and exports department establish, we start our international sales

4 Sell Fast Aboard

our exports annual sales amount reach USD 5,000,000


Certifications

Quality Assurance

Protect Your Payment,
Secure Your Order

Our Advantages

High Quality---- Quality Raw Material, Advanced Facilities, Fine Procedures.

High Productivity

Fast Delivery

Leading Level R & D Department

Experienced Marketing Manager

Professional Design Department

Accept OEM & ODM

Excellent After-sales Service

We Serve The Top 500

FAQ

FAQ

1. Could I buy low quantity for test?

Yes, of course, the prices showed on the web, including the shipping cost, but is wil take around 20-25 days to your place. if you need fast express, you could contact me, we have contracted price with express company, such as DHL, UPS, FEDEX,TNT.

2. When will make delivery after the order

We usually make delivery within 2 days, if you order large quantity or OEM items, it will take longer time.

3. What is the MOQ?

Usually, our MOQ showed on the website,but some items or OEM item, the MOQ will be confirmation after negotiation

4. Can I get a discount?

Yes, if you order bigger quantity or if you could use your own express account, pls tell me to check the final price.

5. Do you inspect the finished products?

Yes, each step of production and finished products will be came out inspection by QC department before shipping.








Vollständige Details anzeigen
