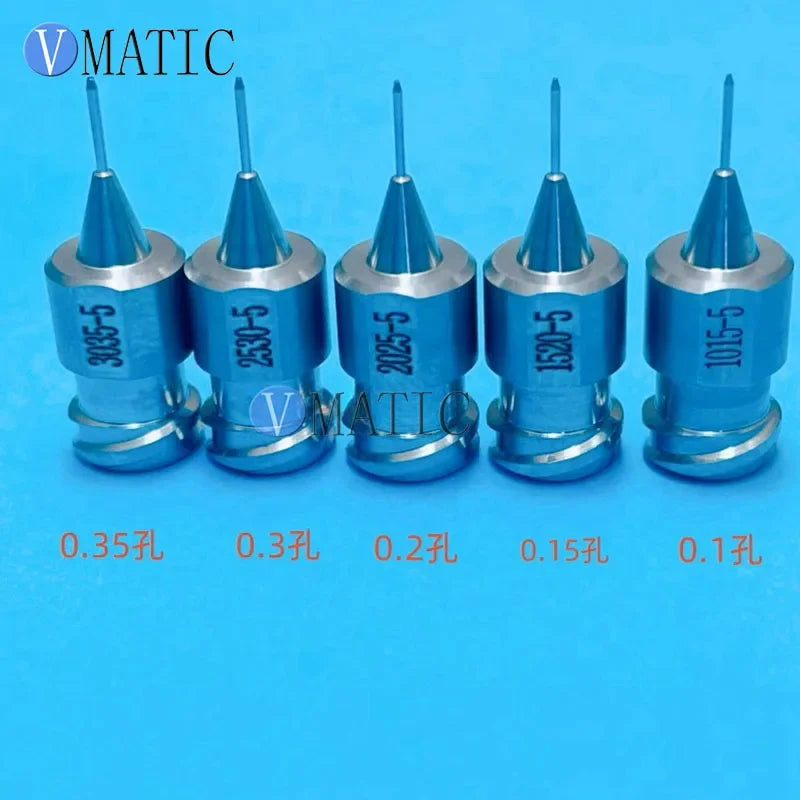

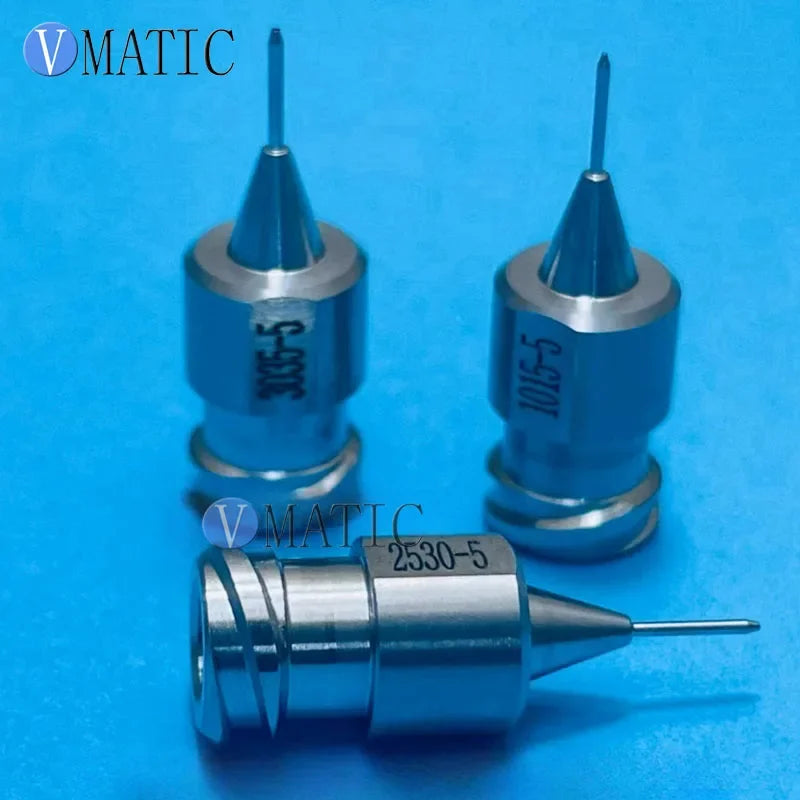

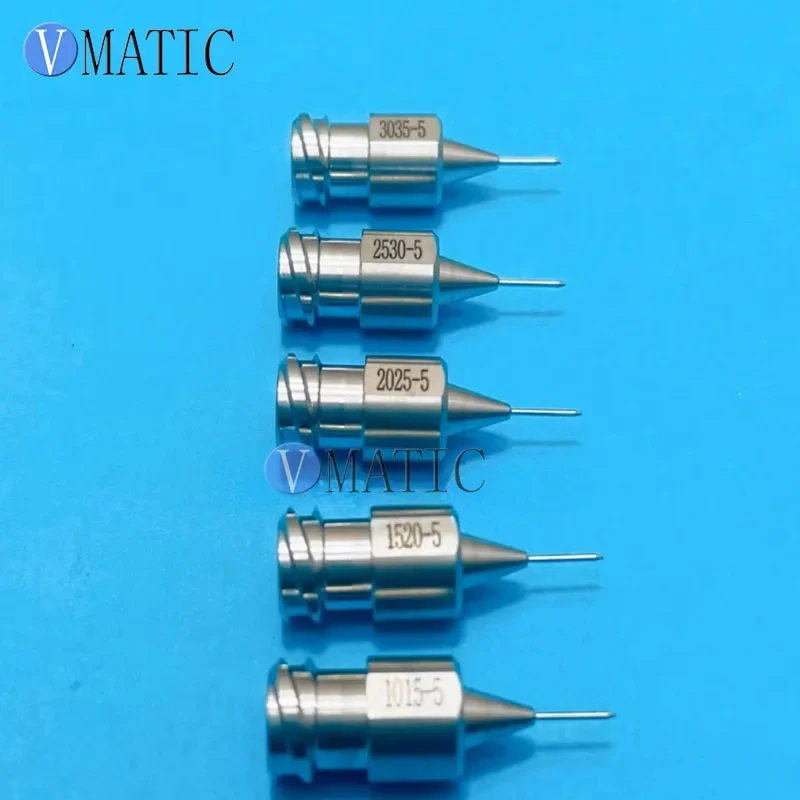

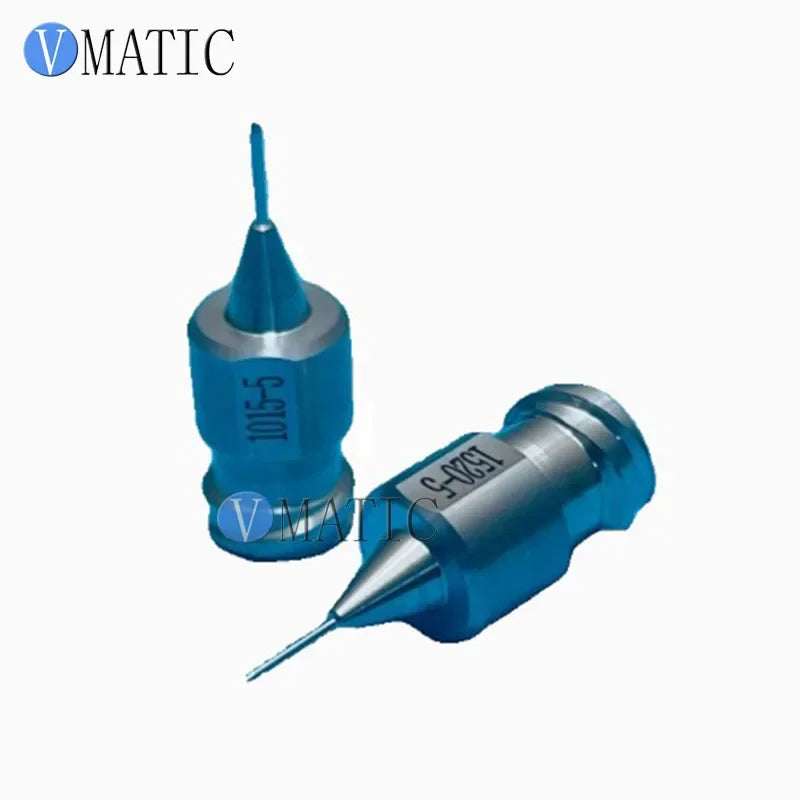

316 Stainless Steel, One-Piece Design Extended Dual-Thread Precision Dispensing Needle - 5mm Ultra-Thin Tip with Micro-Bore

316 Stainless Steel, One-Piece Design Extended Dual-Thread Precision Dispensing Needle - 5mm Ultra-Thin Tip with Micro-Bore

$84.28 USD
$0.00 USD $84.28 USD
In offerta Esaurito
Spese di spedizione calcolate al check-out.
Color

316 Stainless Steel, One-Piece Design Extended Dual-Thread Precision Dispensing Needle - 5mm Ultra-Thin Tip with Micro-Bore



Details

Advantage:

  1. Dual-Thread Sealing Technology

    • "Integrated dual-screw threads prevent leakage and ensure airtight performance under 10 bar pressure."

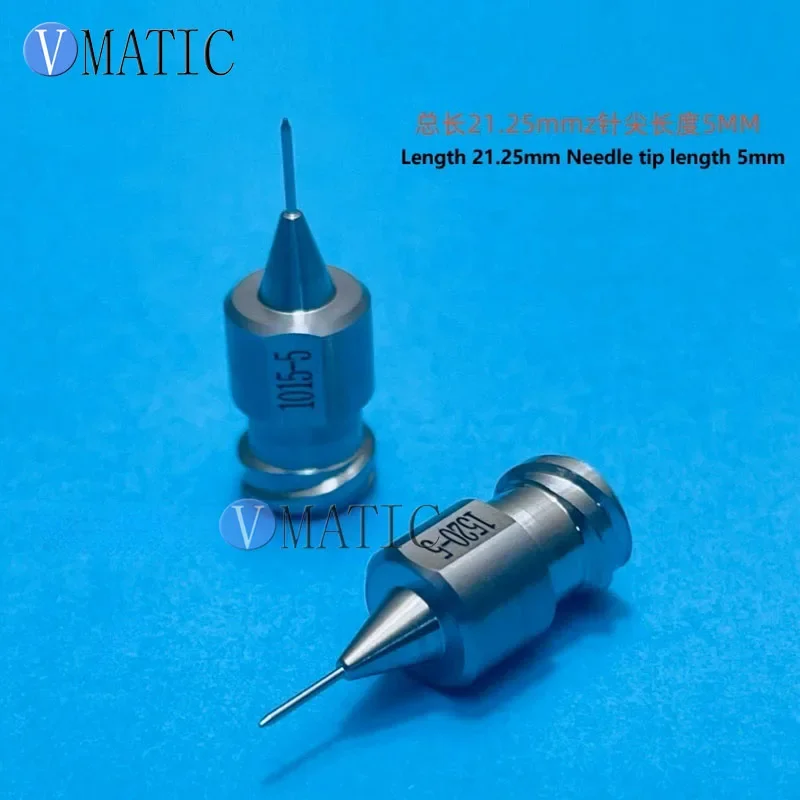

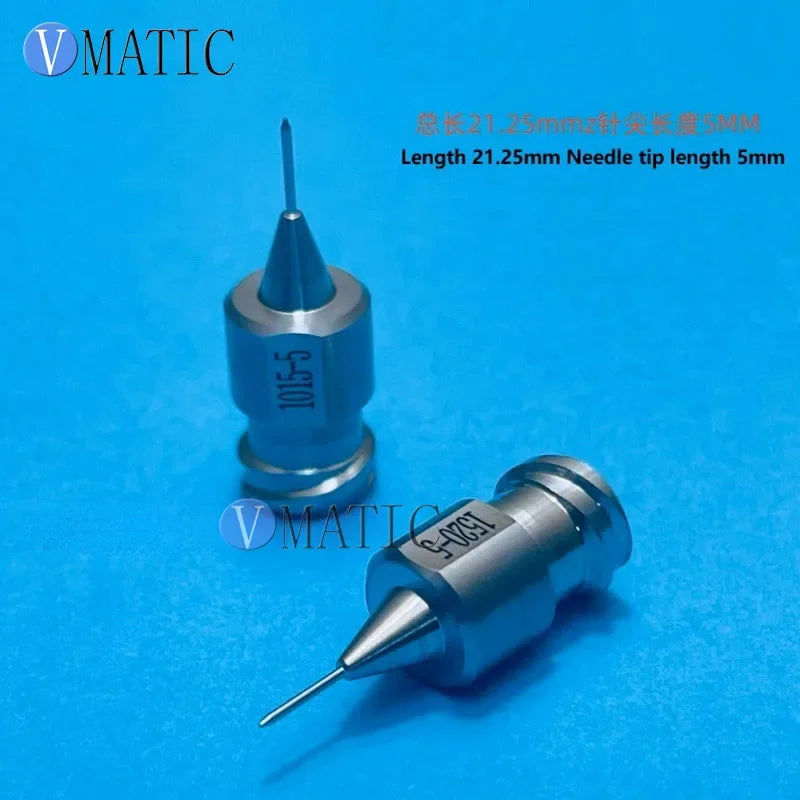

  2. Extended 5mm Ultra-Thin Tip

    • "Elongated needle tip (5mm length) enables precise glue delivery in deep cavities and narrow spaces."

  3. Micro-Bore Precision

    • "Ultra-thin 0.3mm orifice ensures ±0.05mm dispensing accuracy for microelectronics and medical device assembly."

  4. Seamless One-Piece Construction

    • "Monolithic stainless steel design eliminates weak joints, achieving 50,000+ cycles durability."

  5. Corrosion-Resistant Material

    • "316L stainless steel body resists acids, solvents, and high-humidity environments."

  6. Versatile Applications

    • "Ideal for UV adhesives, solder paste, and biomedical-grade silicones."



      Technical Specifications Table (Detail Page):

      Parameter

      Specification

      Tip Length

      5mm ±0.1mm

      Orifice Diameter

      0.3mm (Customizable to 0.1-0.5mm)

      Material

      316L Stainless Steel

      Thread Type

      M5 Dual Screw Thread

      Max Pressure

      10 bar

      Temperature Resistance

      -40°C to 200°C


Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-8 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Company Information

Ningbo VMATIC Liquid Control Industry Co., Ltd is a specialized manufacturer and exporter of dispensing systems and equipment for all industries. All fluids can be accurately dispensed either by air pressure or mechanical force. We are dedicated to dispensing design, development, production and sales. We have 10 major series for our products, respective classification according quality and function, etc. Each of our items is abided by providing to all industries a cost-effective solution for the needs to dispense liquids and paste in a controlled manner.

All fluids can be accurately dispensed either by air pressure or mechanical force. We supply simple hand or bench dispensers for single part materials through to automatic robotic dispensing systems with vision recognition and meter-mix equipment for two-part materials, such as epoxies. A complete line of replaceable syringes, barrels, needles and tips are also available.

Our products are suitable for many applications including Medical, Electronic, Jewelry, Automotive and general industrial OEM assembly operations.
